It has a certain degree of flexibility and can adapt to the requirements of a certain range of product specifications and varieties.
Simple structure and low cost.
High production efficiency and low energy consumption.

Technical Parameters:

Parameter	Value
Computer-Numerical-Control Drilling Machine	Automated Tapping and Drilling Machine
CNC Tapping Machine	BT40 Spindle Taper
Machine net weight	3500KG
Drilling Capacity (Copper Parts) through-hole	external diameter 60mm
Rotary Turret	12 Axis
Tool Changing Motor	750W
Base X-acis Max. travel (screw)	450mm
X/Y/Z axis Max. Speed	30m/min
X/Y/Z axis repeat positioning accuracy	0.008mm
Rotating fourth axis	YT200R
Servo spindle motor power	5.5KW
Lifting Z-acis Max. travel (screw)	300mm
Saddle Y-axis Max. travel(screw)	500mm
Spindle revolution	0-3000rpm
Spindle taper	BT40
Max. tapping (copper parts)	50×3mm
Spindle turret tool changing time	0.8s/180°
Working table size	300*300mm
Dimension:L×W×H	2300×1600×1900mm

Applications:

Valve manufacturing industry, plumbing hardware industry, auto motorcycle parts, non-ferrous metal die-casting industry, electronics and parts processing and other industries processing thread holes.

Packing and Shipping:

Packaging and Shipping for CNC Tapping and Drilling Machine (New):

The machine will be securely packaged with foam padding inside an appropriate cardboard box.
The box will be sealed shut with tape.
The box will be labeled with the appropriate shipping information.
The box will be placed in an appropriate shipping container.
The shipping container will be secured with appropriate straps.
The shipping container will be labeled with the appropriate shipping information.

FAQ:

Q1: What is the Brand Name of this CNC Tapping and Drilling Machine?

A1: The Brand Name of this CNC Tapping and Drilling Machine is DZ.

Q2: What is the Model Number of this CNC Tapping and Drilling Machine?

A2: The Model Number of this CNC Tapping and Drilling Machine is TA-12.

Q3: Where is this CNC Tapping and Drilling Machine produced?

A3: This CNC Tapping and Drilling Machine is produced in CHINA.

Q4: What are the features of this CNC Tapping and Drilling Machine?

A4: This CNC Tapping and Drilling Machine features high-precision, high-speed, reliable performance and a long service life.

Q5: What is the application of this CNC Tapping and Drilling Machine?

A5: This CNC Tapping and Drilling Machine is mainly used for tapping and drilling various materials.

Tags:

Industrial Tapping and Drilling Machine

CNC Tapping and Drilling Machine

5.5KW Tapping and Drilling Machine

Etiquetas:

Máquina de perfuração e perfuração industrial

Máquina de perfuração e perfuração CNC

5Máquina de perfuração e perfuração de 0

Detalhes dos produtos

Para casa > produtos >

Máquina de perfuração

From brass blanks to sanitary fittings: Drilling tapping machine efficiently completes the drilling and tapping process for faucets and valves

Todas as categorias

Máquina de polonês do CNC

Máquina de moagem e polimento

Ferramentas de construção

Mãos de porta e placas

Máquina de moagem e polimento de robôs

Máquina de moedura do ROBÔ

Baixa Pressão Máquina de Fundição

Gravidade morrem máquina de carcaça

Máquina do tiro do núcleo da areia

Máquina de polonês de moedura automática

Componentes metálicos de móveis

máquina de moedura automática

Solução de linha de produção de torneiras

Máquina fazendo à máquina do CNC

Máquina de perfuração

From brass blanks to sanitary fittings: Drilling tapping machine efficiently completes the drilling and tapping process for faucets and valves

Informações pormenorizadas

Descrição do produto

Informações pormenorizadas

Material:

Metal

Torreta giratória:

Linha central 12

Especificação do cone:

10000/1200/15000/1800

Fonte de energia:

Elétrico

Capacidade da revista de ferramentas:

24pcs

Máx. Tocando diâmetro:

Tocando profundidade:

25mm

Conjunto do eixo:

BT40

Revolução do eixo:

0-3000rpm

Cor:

Azul

Freqüência:

50/60Hz

Pressão do ar:

≥6kg/c M³

Tamanho da tabela de funcionamento:

300*300mm

Utilize ferramentas o motor em mudança:

750W

Profundidade de perfuração:

50mm

Descrição do produto

Industrial Thread Machining System: Drilling And Tapping Excellence.

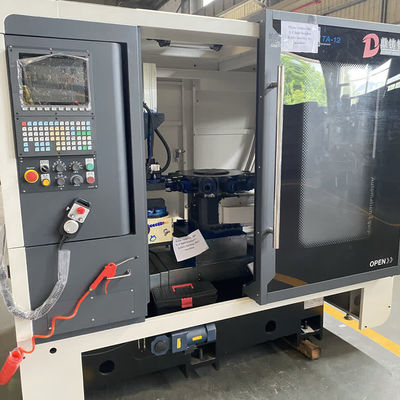

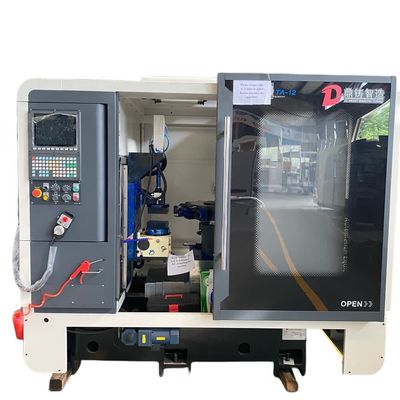

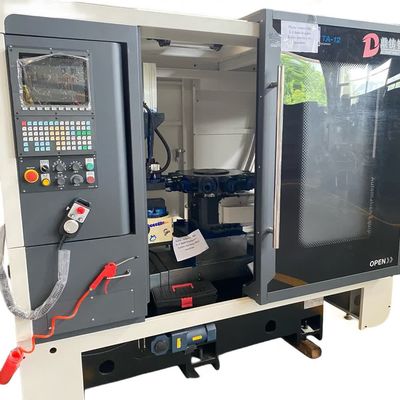

From brass blanks to sanitary fittings: Drilling tapping machine efficiently completes the drilling and tapping process for faucets and valves 0

Features:

It has a certain degree of flexibility and can adapt to the requirements of a certain range of product specifications and varieties.
Simple structure and low cost.
High production efficiency and low energy consumption.

Technical Parameters:

Parameter	Value
Computer-Numerical-Control Drilling Machine	Automated Tapping and Drilling Machine
CNC Tapping Machine	BT40 Spindle Taper
Machine net weight	3500KG
Drilling Capacity (Copper Parts) through-hole	external diameter 60mm

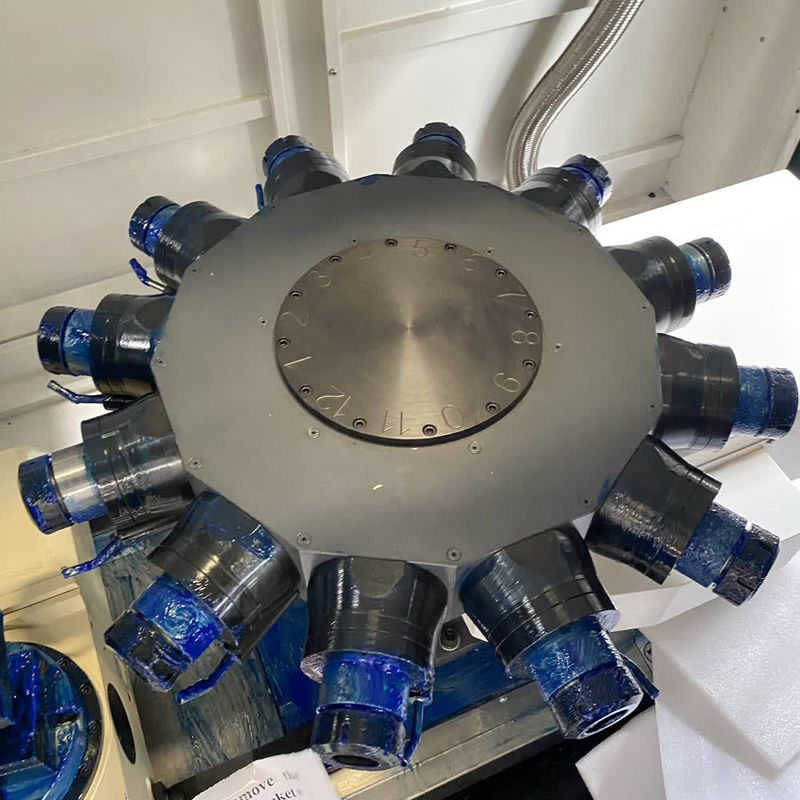

Rotary Turret	12 Axis
Tool Changing Motor	750W
Base X-acis Max. travel (screw)	450mm
X/Y/Z axis Max. Speed	30m/min
X/Y/Z axis repeat positioning accuracy	0.008mm
Rotating fourth axis	YT200R
Servo spindle motor power	5.5KW
Lifting Z-acis Max. travel (screw)	300mm
Saddle Y-axis Max. travel(screw)	500mm
Spindle revolution	0-3000rpm
Spindle taper	BT40
Max. tapping (copper parts)	50×3mm
Spindle turret tool changing time	0.8s/180°
Working table size	300*300mm
Dimension:L×W×H	2300×1600×1900mm

Applications:

Valve manufacturing industry, plumbing hardware industry, auto motorcycle parts, non-ferrous metal die-casting industry, electronics and parts processing and other industries processing thread holes.

Packing and Shipping:

Packaging and Shipping for CNC Tapping and Drilling Machine (New):

The machine will be securely packaged with foam padding inside an appropriate cardboard box.
The box will be sealed shut with tape.
The box will be labeled with the appropriate shipping information.
The box will be placed in an appropriate shipping container.
The shipping container will be secured with appropriate straps.
The shipping container will be labeled with the appropriate shipping information.
